Vertical Electrophroesis Systems

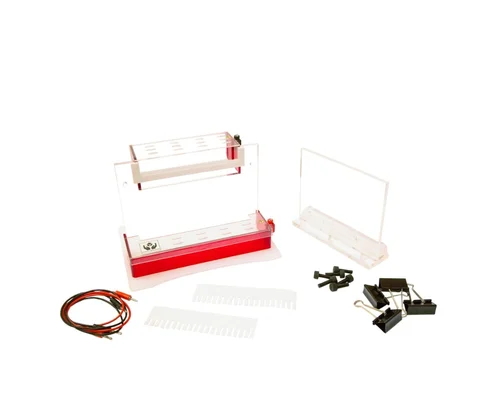

Mini Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model : Regular- Mini Vertical
  • Dimension : 12cm(L)x10cm(B)x11cm(H)
  • Number of Samples : 7
  • Buffer Volume : 100+150ml
  • Gel Size : 8x7cm (1 Gel)
  • Glass Plate : 10x10cm Notched and Square Plates (2 Sets)
  • Number of Combs: 7-wells 1mm thickness comb (Well Width-7mm, Interspace-3mm) (1 No.)
    7-wells 1.5mm thickness comb (Well Width-7mm, Interspace-3mm) (1 No.)
  • Spacers : 1mm and 1.5mm Spacers (3 Nos. Each)
  • Gasket : Fixed
  • Clamp and Screws : 1 Set
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid: 1 No.
  • Gel Caster: 1 No.
  • Instruction Manual
  • Warranty card
Ordering Information
Cat. No Product Price
VMR0007 Mini Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.10500.00

Mini Dual Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model : Regular- Mini Dual Vertical
  • Dimension : 12cm(L)x15cm(B)x11cm(H)
  • Number of Samples : 14
  • Buffer Volume : 150+200ml
  • Gel Size : 8x7cm (2 Gel)
  • Glass Plate : 10x10cm Notched and Square Plates (3 Sets)
  • Number of Combs:7-wells 1mm thickness comb (Well Width-7mm, Interspace-3mm)(2 Nos.)
    7-wells 1.5mm thickness comb (Well Width-7mm, Interspace-3mm) (2 Nos.)
  • Spacers: 1mm and 1.5mm Spacers (6 Nos. Each)
  • Gasket : Fixed
  • Clamp and Screws : 2 Sets
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid: 1 No.
  • Dual Gel Caster: 1 No.
  • Instruction Manual & Warranty card
Ordering Information
Cat. No Product Price
VTR0014 Mini Dual Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.20700.00

Midi Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model: Regular- Midi Vertical
  • Dimension: 23cm(L)x18cm(B)x20cm(H)
  • Number of Samples : 13
  • Buffer Volume: 150+200ml
  • Gel Size: 16x14cm (1 Gel)
  • Glass Plate: 18x18cm Notched and Square Plates (2 Sets)
  • Number of Combs: 13-wells 1mm thickness comb (Well Width-6mm,Interspace-4mm) (1 No.)
    13-wells 1.5mm thickness comb (Well Width-6mm,Interspace-4mm) (1 No.)
  • Spacers: 1mm and 1.5mm Spacers (3 Nos. Each)
  • Gasket: Fixed
  • Clamp and Screws: 1 Set
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid : 1 No.
  • Gel Caster : 1 No.
  • Instruction Manual
  • Warranty card
Ordering Information
Cat. No Product Price
VDR0013 Midi Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.20600.00

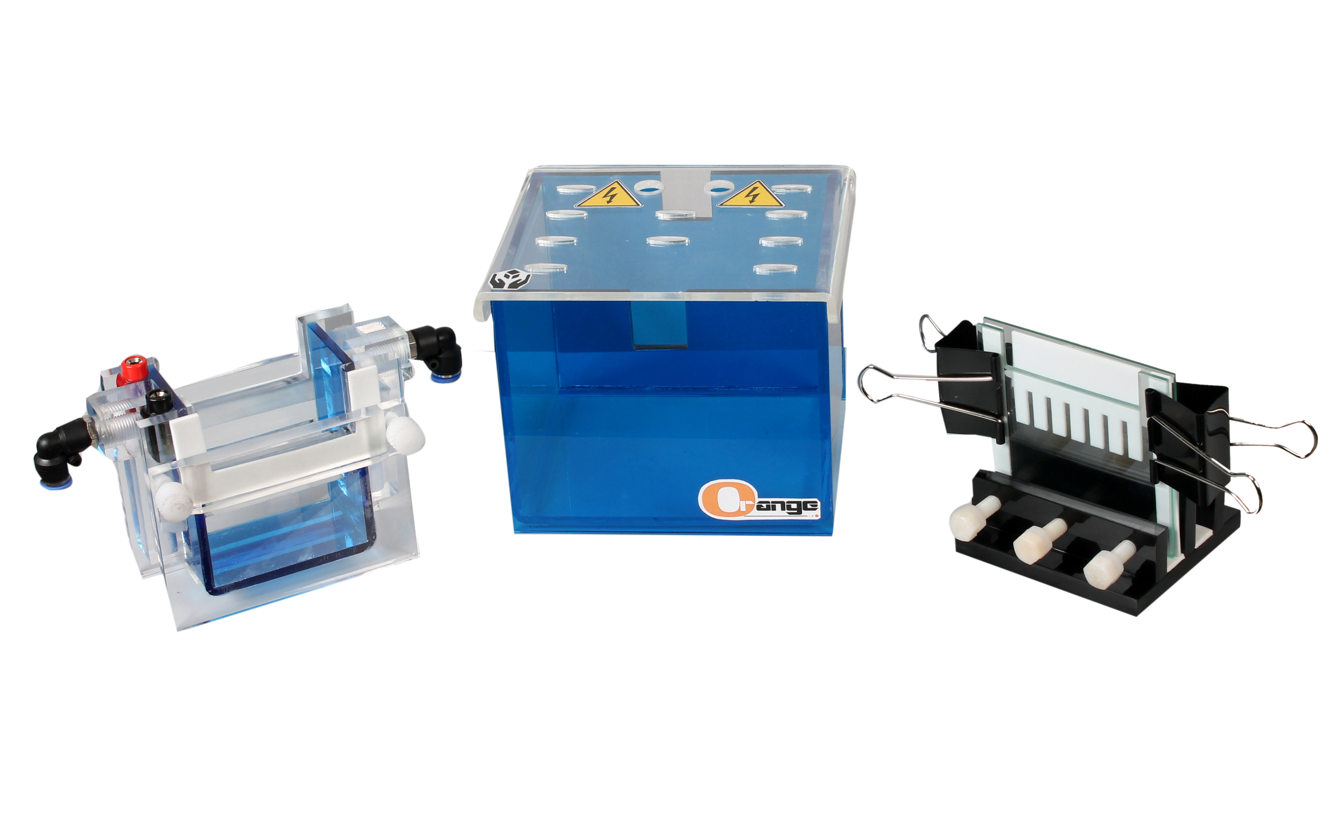

Midi Dual Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model : Regular- Midi Dual Vertical
  • Dimension : 18cm(L)x21cm(B)x20cm(H)
  • Number of Samples : 26
  • Buffer Volume : 250+500ml
  • Gel Size : 16x14cm (2 Gel)
  • Glass Plate : 18x18cm Notched and Square Plates (3 Sets)
  • Number of Combs :13-wells 1mm thickness comb (Well Width-6mm,Interspace-4mm) (2 Nos.)
    13-wells 1.5mm thickness comb (Well Width-6mm,Interspace-4mm)(2 Nos.)
  • Spacers : 1mm and 1.5mm Spacers (6 Nos. Each)
  • Gasket : Fixed
  • Clamp and Screws : 2 Sets
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid : 1 No.
  • Dual Gel caster : 1 No.
  • Instruction Manual
  • Warranty card
Ordering Information
Cat.No Product Price
VDR0026 Midi Dual Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.40400.00

Maxi Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model : Regular- Maxi Vertical
  • Dimension : 29cm(L)x20cm(B)x21cm(H)
  • Number of Samples : 20
  • Buffer Volume : 300+600ml
  • Gel Size : 20x16cm (1 Gel)
  • Glass Plate : 23x20cm Notched and Square Plates (2 Sets)
  • Number of Combs :20-wells 1mm thickness comb (Well Width-7mm,Interspace-3mm) (1 No.)
    20-wells 1.5mm thickness comb (Well Width-7mm,Interspace-3mm) (1 No.)
  • Spacers : 1mm and 1.5mm Spacers (3 Nos. Each)
  • Gasket : Fixed
  • Clamp and Screws : 1 Set
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid : 1 No.
  • Gel Caster System : 1 No.
  • Instruction Manual
  • Warranty card
Ordering Information
Cat.No Product Price
VXR0020 Maxi Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.38300.00

Maxi Broad Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus)

    Specifications
  • Make : ORANGE
  • Model : Regular- Maxi Broad Vertical
  • Dimension : 55(L)x20(B)x24(H)
  • Number of Samples : 80
  • Buffer Volume : 600+750ml
  • Gel Size : 41x20cm (1 Gel)
  • Glass Plate : 45x45cm Notched and Square Plates (2 Sets)
  • Number of Combs :80-wells 1mm thickness Shark tooth comb (Well Width-3mm,Interspace-2.1mm) (1 No.)
    80-wells 1.5mm thickness Shark tooth comb (Well Width-3mm,Interspace-2.1mm) (1 No.)
    40-wells 1mm thickness Shark tooth comb (Well Width-7mm,Interspace-3mm) (1 No.)
    40-wells 1.5mm thickness Shark tooth comb (Well Width-7mm,Interspace-3mm) (1 No.)
  • Spacers : 1mm and 1.5mm Spacers (3 Nos. Each)
  • Gasket : Fixed
  • Comb Capacity (5mm Deep Well : 15_l,22_l,35_l,52_l
  • Clamp and Screws : 1 Set
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Buffer Chamber with Safety Lid : 1 No.
  • Gel Caster : 1 No.
  • Instruction Manual
  • Warranty card
Ordering Information
Cat.No Product Price
VBR0080 Maxi Broad Vertical Gel Electrophoresis Unit (SDS - PAGE Apparatus) Rs.50600.00
