Gel Documentation Systems

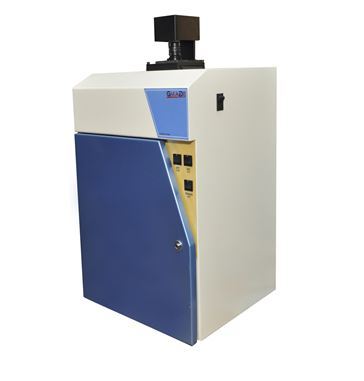

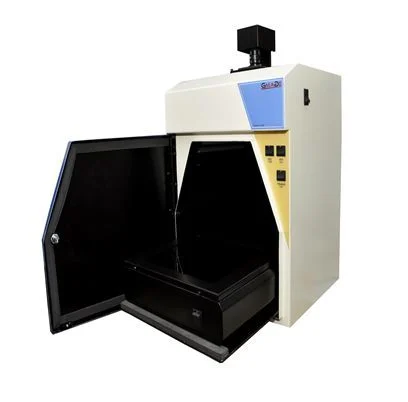

GEL DOCUMENTATION SYSTEM G-1

Features:
• Small footprint
• Spacious Dark Room
• High Resolution Camera
• White illumination, Trans UV, EPI UV
• Low cost

Specifications
• Make : ORANGE
• Cat. No : GDS365DB
• UV Transilluminator : 365NM
• Maximum Viewing Area : 21 x 26 CM
• TRANS- UV

• EPI- UV
• EPI - VIS
• Camera : Digital
• Image Resolution (Pixels) : 16MP
• Lens : Manual
• 1D Gel Analysis Software: Basic

Basic 1D Gel Analysis Software:
• Import common image types up to 48bit, 16 Bit Grey levels
• Image pre-processing.
• Manual lane detection
• Manual and Automatic band detection
• Manual correction for lanes and bands
• 6 methods for background noise reduction
• Rf correction to correct distorted gels
• MW Calibration using MW standards, Standard editor
• Quantification for bands and lanes

Ordering Information
CAT.NO	PRODUCTS	PRICE
GDS365DB	GEL DOCUMENTATION SYSTEM G-1	P.O.R

GEL DOCUMENTATION SYSTEM G-2

Features:
• Small footprint
• Spacious Dark Room
• High Resolution Camera
• White illumination, Trans UV, EPI UV
• Low cost

Specifications
• Make : ORANGE
• Cat. No : GDS312DB
• UV Transilluminator : 312NM
• Maximum Viewing Area : 21 x 26 CM
• TRANS- UV

• EPI- UV
• EPI - VIS
• Camera : Digital
• Image Resolution (Pixels) : 16MP
• Lens : Manual
• 1D Gel Analysis Software: Basic

Basic 1D Gel Analysis Software:
• Import common image types up to 48bit, 16 Bit Grey levels
• Image pre-processing.
• Manual lane detection
• Manual and Automatic band detection
• Manual correction for lanes and bands
• 6 methods for background noise reduction
• Rf correction to correct distorted gels
• MW Calibration using MW standards, Standard editor
• Quantification for bands and lanes

Ordering Information
CAT.NO	PRODUCTS	PRICE
GDS312DB	GEL DOCUMENTATION SYSTEM G-2	P.O.R

GEL DOCUMENTATION SYSTEM G-3

Features:
• Small footprint
• Spacious Dark Room
• High Resolution Camera
• Manual Zoom Lens
• White illumination, Trans UV, EPI UV and Blue Light options
• Image capture software
• Analyse data at your own computer
• Low cost

Specifications
• Make : ORANGE
• Cat. No : GDS312CL
• UV Transilluminator : 312NM
• Maximum Viewing Area : 21 x 26 CM
• TRANS- UV

• EPI- UV
• EPI - VIS
• Camera : CCD
• Emission Filter
• Image Resolution (Pixels) : 5MP
• Lens : Manual
• 1D Gel Analysis Software: Licensed

Emission Filter:

Amber filter is supplied as standard filter (F590nm +/- 30nm)

Image Capture Software:
• Is provided with zoom,auto focus and iris settings for lens.
• Easily recall the settings for a particular gel size without adjusting each and every time.
• Adjustments for gain and gamma corrections for improved sensitivity.
• Auto exposure and Manual exposure override.
• Automatic background correction in continuous mode for selective backgrounds for highly contrast images.

1D Gel Analysis Software:
• Import common image types up to 48bit, 16 Bit Grey levels
• Interface to control scanner and cameras
• Image pre-processing, rotate, crop, scale, image filters
• Automatic lane and band detection
• Manual lane and band detection
• Manual correction for lanes and bands
• 6 methods for background noise reduction (automatic and manual)
• Rf correction to correct distorted gels
• MW Calibration using MW standards, Standard editor
• Quantification for bands and lanes
• Normalization using reference bands
• detailed list of 5 analysis values
• Reporting, create reports using templates, Export and Print
• Data export to MS Excel, Open Office
• Documentation of gels and export Update via Internet or

Ordering Information
CAT.NO	PRODUCTS	PRICE
GDS312CL	GEL DOCUMENTATION SYSTEM G-3	P.O.R

GEL DOCUMENTATION SYSTEM G-4

Features:
• Small footprint
• Spacious Dark Room
• High Resolution Camera
• Motorized Zoom Lens
• White, Trans UV, EPI UV and Blue Light options
• Image capture software
• Analyse data at your own computer
• Low cost

Specifications
• Make : ORANGE
• Cat. No : GDS312CLL
• UV Transilluminator : 312NM
• Maximum Viewing Area : 21 x 26 CM
• TRANS- UV

• EPI- UV
• EPI - VIS
• Camera : CCD
• Emission Filter
• Image Resolution (Pixels) : 5MP
• Lens : Motorized
• 1D Gel Analysis Software: Licensed

LENS:

Motorized zoom lens with software controlled zoom, focus and iris.

The software can recall the stored settings of these parameters during subsequent image captures for easy and fast image capture with just a click.

Emission Filter:

Amber filter is supplied as standard filter (F590nm +/- 30nm)

Image Capture Software:
• Is provided with zoom,auto focus and iris settings for lens.
• Easily recall the settings for a particular gel size without adjusting each and every time.
• Adjustments for gain and gamma corrections for improved sensitivity.
• Auto exposure and Manual exposure override.
• Automatic background correction in continuous mode for selective backgrounds for highly contrast images.

1D Gel Analysis Software:
• Import common image types up to 48bit, 16 Bit Grey levels
• Interface to control scanner and cameras
• Image pre-processing, rotate, crop, scale, image filters
• Automatic lane and band detection
• Manual lane and band detection
• Manual correction for lanes and bands
• 6 methods for background noise reduction (automatic and manual)
• Rf correction to correct distorted gels
• MW Calibration using MW standards, Standard editor
• Quantification for bands and lanes
• Normalization using reference bands
• detailed list of 5 analysis values
• Reporting, create reports using templates, Export and Print
• Data export to MS Excel, Open Office
• Documentation of gels and export Update via Internet

Ordering Information
CAT.NO	PRODUCTS	PRICE
GDS312CLL	GEL DOCUMENTATION SYSTEM G-4	P.O.R

GEL IMAGING SYSTEM

Ordering Information
CAT.NO	PRODUCTS	PRICE
UV365CH	GEL IMAGING SYSTEM 365nm (UV Transilluminator/Cone shape hood/Camera)	P.O.R
UV312CH	GEL IMAGING SYSTEM 312nm (UV Transilluminator/Cone shape hood/Camera)	P.O.R
