Power supplies

Power supplies

Power supplies

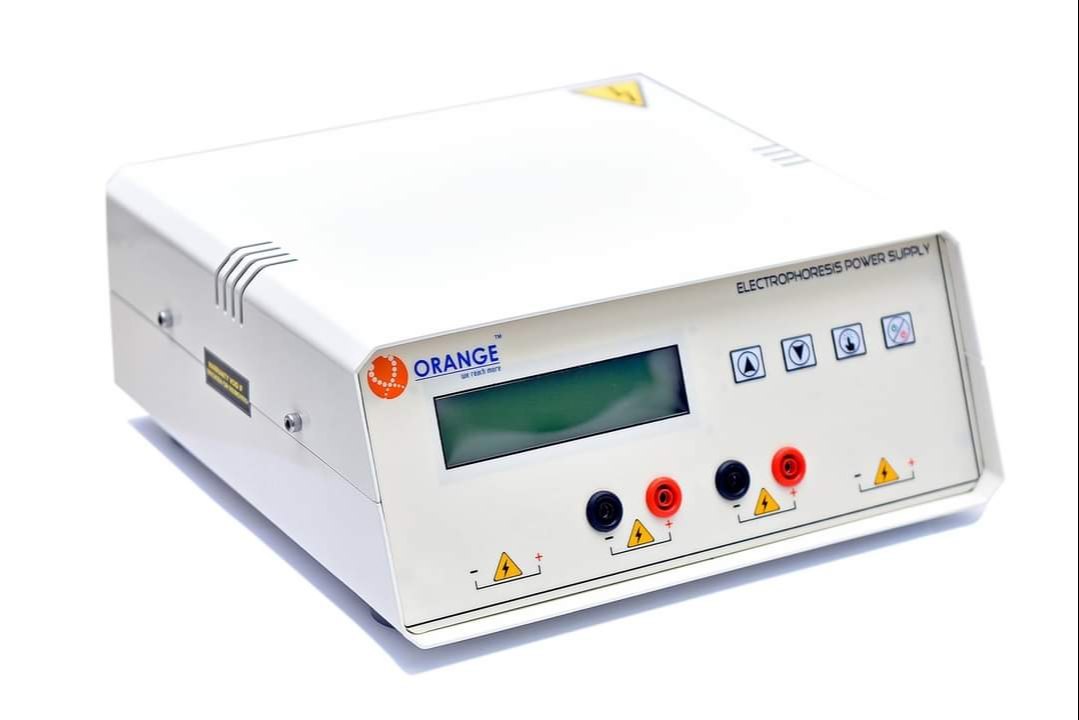

Programmable Power Supply 300V/100mA

Specifications

Make : ORANGE
Model : Programmable Power Supply
Output range : (programmable) 0–300 V, fully adjustable in 1 V steps, 100 mA, fully adjustable in 1 mA steps
Type of output : Constant voltage or constant current with automatic crossover
Output terminals : 3 pair recessed banana jacks in parallel

Timer : 1 min–999 min , fully adjustable
Start /Stop Function : Yes
Display : LCD
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Safety features : No-load detection, sudden load change detection, overload/short-circuit detection,
Input protection : Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual & Warranty card

Ordering Information
Cat.No	Product	Price
PPS3001	Programmable Power Supply 300V/100mA	Rs.19000.00

Programmable Power Supply 300V/200mA

Specifications

Make : ORANGE
Model : Programmable Power Supply
Output range : (programmable) 0–300 V, fully adjustable in 1 V steps , 200 mA, fully adjustable in 1 mA steps
Type of output : Constant voltage or constant current with automatic crossover/li>
Output terminals : 3 pair recessed banana jacks in parallel

Timer : 1 min–999 min , fully adjustable
Start /Stop Function : Yes
Display : LCD
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Safety features : No-load detection, sudden load change detection, overload/short-circuit detection,
Input protection : Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual & Warranty card

Ordering Information
Cat.No	Product	Price
PPS3002	Programmable Power Supply 300V/200mA	Rs.27100.00

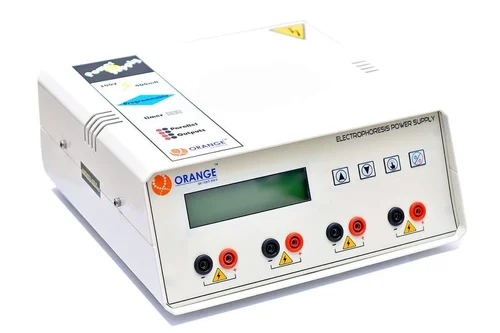

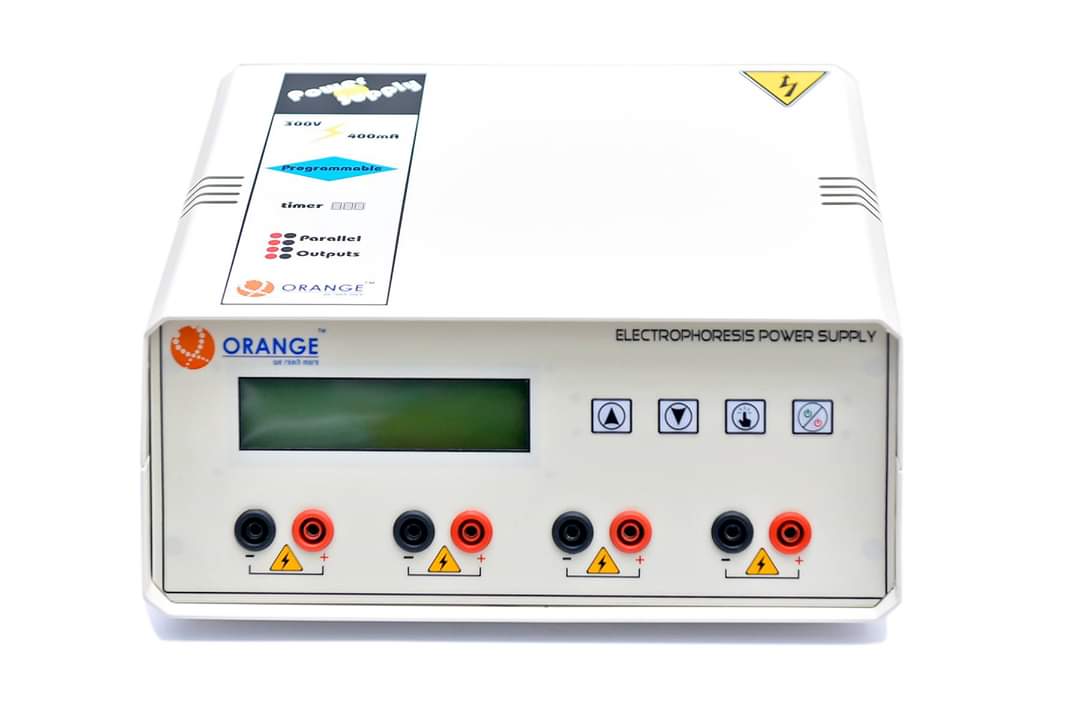

Programmable Power Supply 300V/400mA

Specifications

Make : ORANGE
Model : Programmable Power Supply
Output range : (Programmable) 10–300 V, fully adjustable in
1 V steps,1-400 mA, fully adjustable in 1 mA steps
Type of output : Constant voltage or constant current

Output terminals : 4 pair recessed banana jacks in parallel
Timer : 1 min–999 min , fully adjustable
Start /Stop Function : Yes
Display : LCD
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Safety features : No-load detection, sudden load change detection, overload/short-circuit detection,
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
PPS4003	Programmable Power Supply 300V/400mA	Rs.39200.00

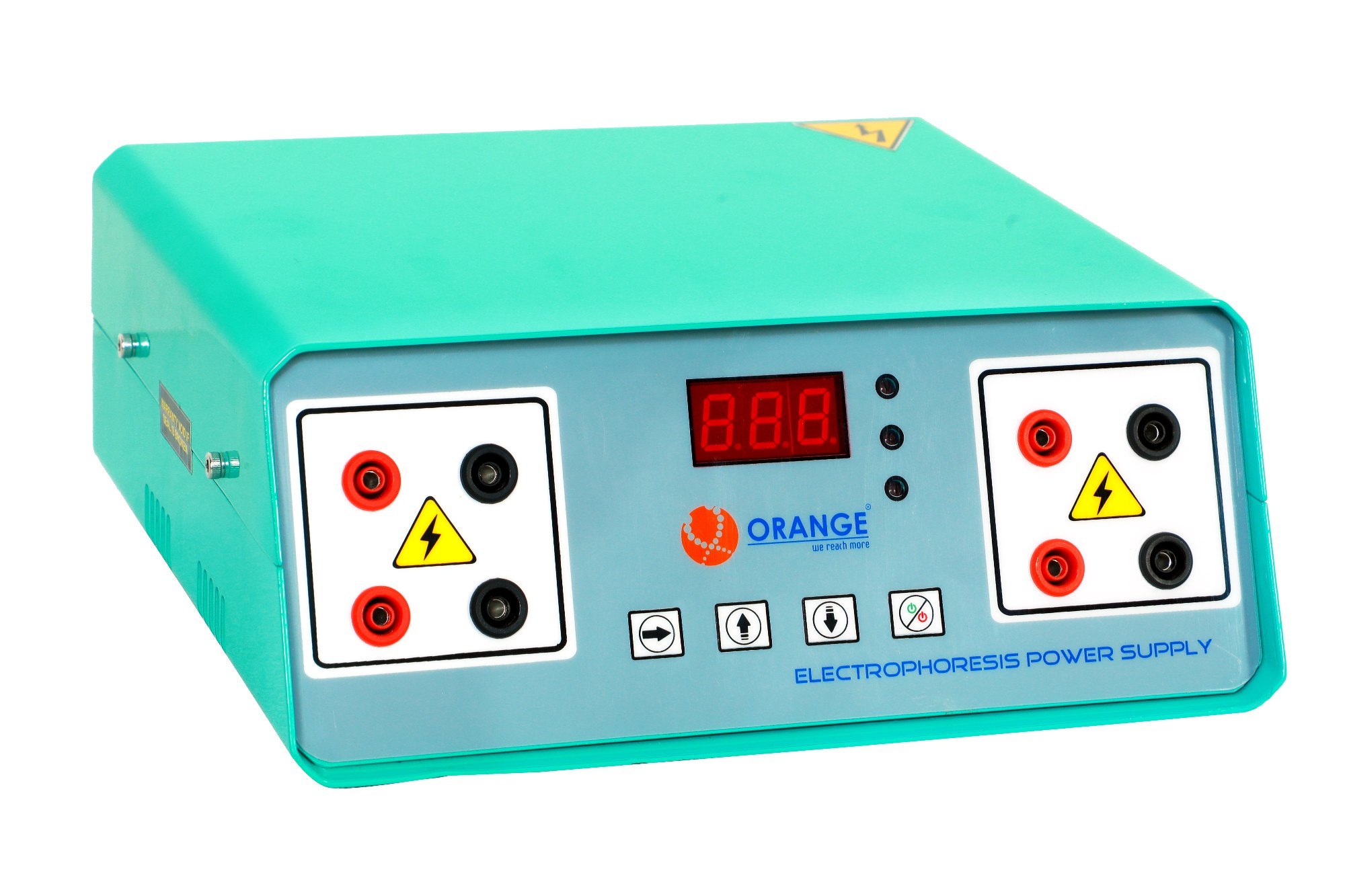

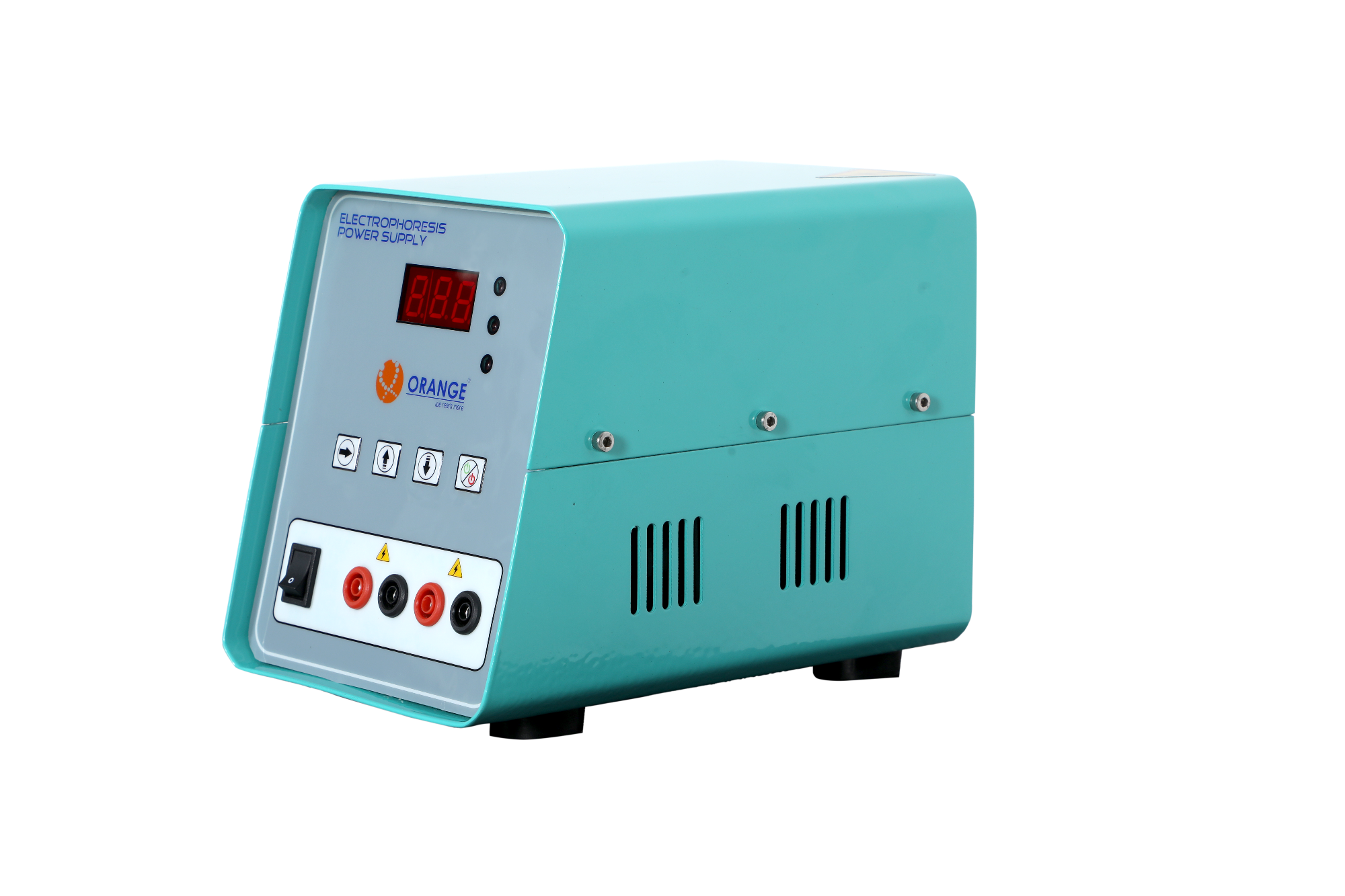

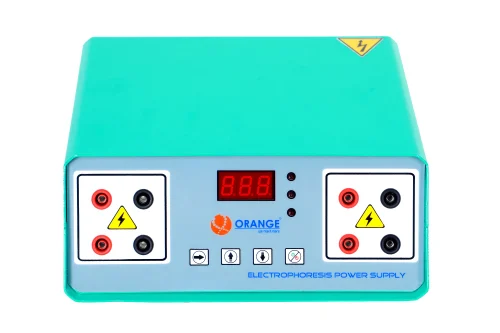

Digital Power Supply 300V/100mA

Specifications

Make : ORANGE
Model : Digital Power Supply
Output range : 10–300 V, fully adjustable in 1 V steps,1-100 mA
fully adjustable in 1 mA steps
Type of output : Constant voltage or constant current

Output terminals : 4 pair recessed banana jacks in parallel
Timer : 1 min–999 min , fully adjustable
Start /Stop Function : Yes
Display : 3-digit LED
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Safety features : No-load detection, sudden load change detection, overload/short-circuit detection
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
DPS1003	Digital Power Supply 300V/100mA	Rs.17500.00

Digital Power Supply 300V/200mA

Specifications

Make : ORANGE
Model : Digital Power Supply
Output range : 10–300 V, fully adjustable in 1 V steps,1-200 mA
fully adjustable in 1 mA steps
Type of output : Constant voltage or constant current

Output terminals : 4 pair recessed banana jacks in parallel
Timer : 1 min–999 min , fully adjustable
Start /Stop Function : Yes
Display : 3-digit LED
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Safety features : No-load detection, sudden load change detection, overload/short-circuit detection
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
DPS2003	Digital Power Supply 300V/200mA	Rs.26000.00

Digital Power Supply 500V/500mA

Specifications

Make : ORANGE
Model: Digital Power Supply
Output range: 10–500 V, fully adjustable in 1 V steps,1-500 mA
Fully adjustable in 1 mA steps
Type of output: Constant voltage or constant current

Output terminals\ : 4 pair recessed banana jacks in parallel
Timer: 1 min–999 min , fully adjustable
Start /Stop Function: Yes
Display : 3-digit LED
Operating conditions: 0–40°C, 0–90% humidity in the absence of condensation
Safety features: No-load detection, sudden load change detection, overload/short-circuit detection
Input protection: 1Amp. Fuse on both hot and neutral
Input power (actual): 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat. No	Product	Price
DPS5105	Digital Power Supply 500V/500mA	Rs.48700.00

Power Supply Basic

Specifications

Make : ORANGE
Model : Power Supply Basic
Output range : 50,100,150,200,250V/100mA
Type of output : Fixed voltage
Display : LED Indications for Output Fixed Voltages

Output terminals : Pair of recessed banana jacks
Enclosures : Mild Steel with Powder Coated
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Control : Knob Control to set the Voltages
Input protection : 1Amp. Fuse controlled
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
APS2501	Power Supply Basic	Rs.4750.00

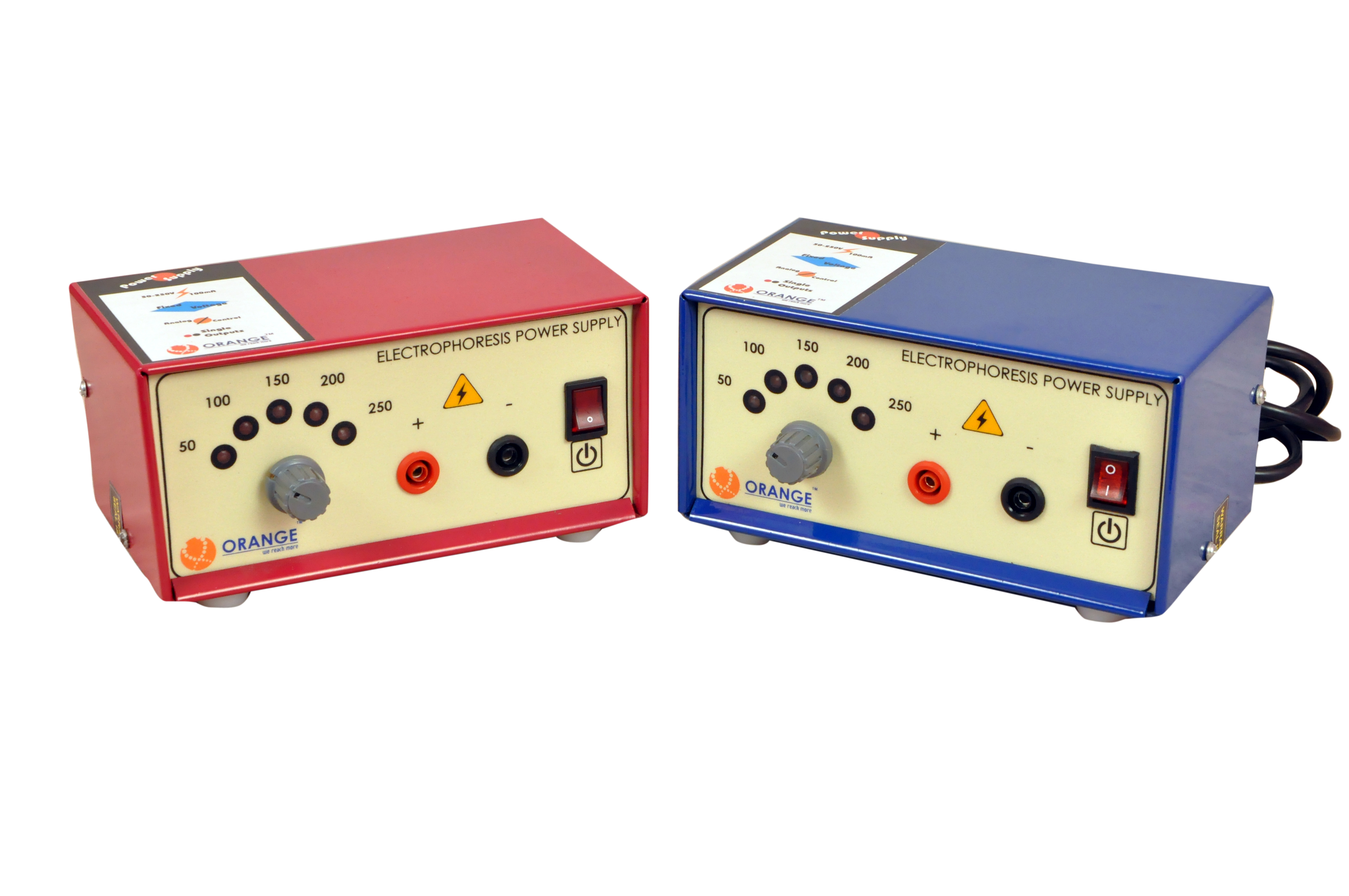

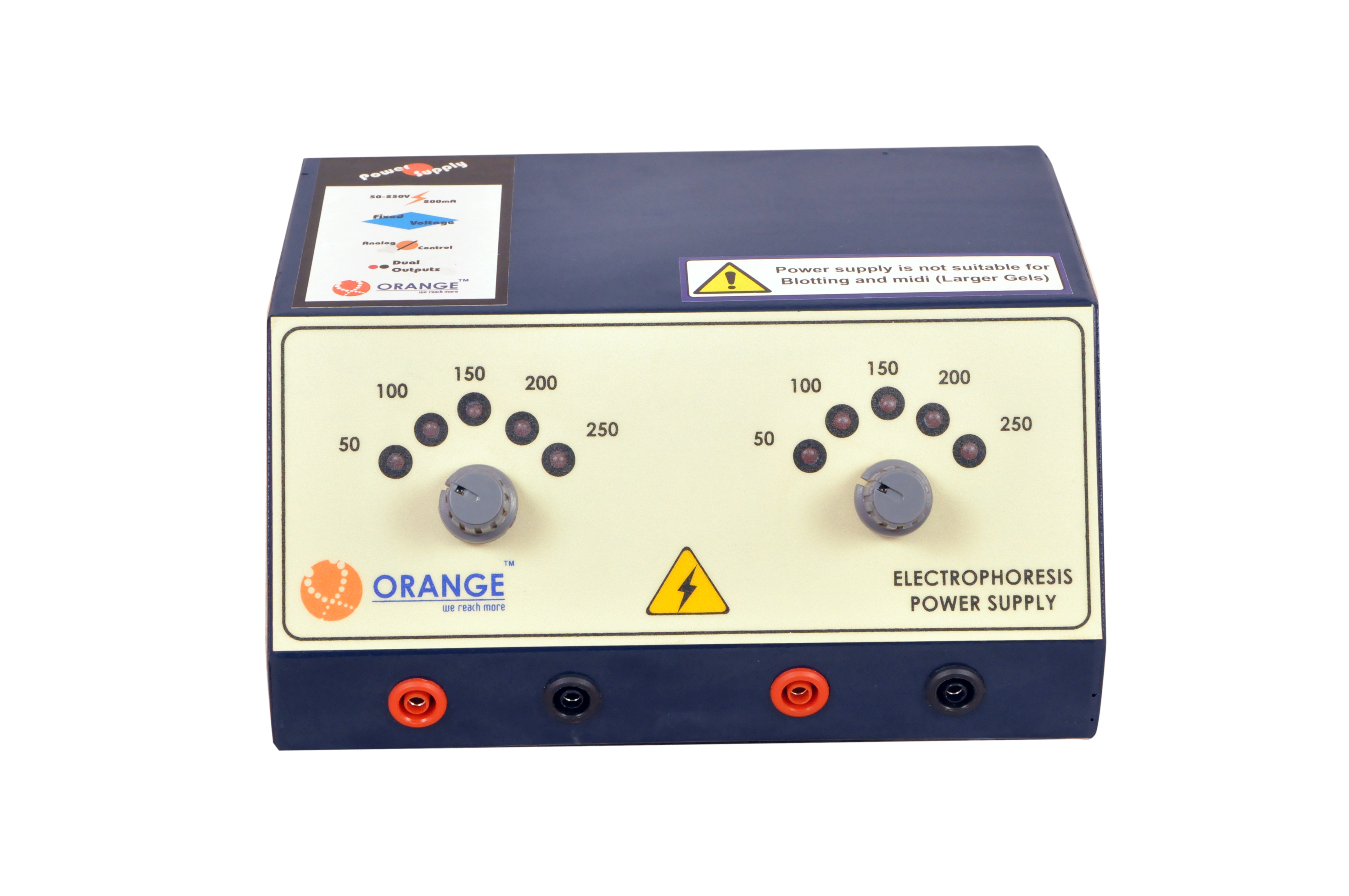

Power Supply Basic Dual

Specifications

Make : ORANGE
Model : Power Supply Basic Dual
Output range : 50,100,150,200,250V/200mA
Type of output : Fixed voltage
Display : LED Indications for Output Fixed Voltages

Output terminals : 2 Pair of recessed banana jacks in parallel
Enclosures : Mild Steel with Powder Coated
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Control : Knob Control to set the Voltages
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
APS2502	Power Supply Basic Dual	Rs.7250.00

High Current Power Supplyt

Specifications

Make : ORANGE
Model : High Current Power Supply
Output range : 60V/3000mA
Type of output : Variable
Display : Separate individual LED displays for Volts & Current

Output terminals : 2 Pair of recessed banana jacks in parallel
Enclosures : Mild Steel with Powder Coated
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Control : Knob Control to set the Voltages and Current
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
APS3060	High Current Power Supply	Rs.37500.00

High Voltage Power Supply

Specifications

Make : ORANGE
Model : High Voltage Power Supply
Output range : 3000V/150mA
Type of output : Variable
Display : Separate individual LED displays for Volts & Current

Output terminals : 2 Pair of recessed banana jacks in parallel
Enclosures : Mild Steel with Powder Coated
Operating conditions : 0–40°C, 0–90% humidity in the absence of condensation
Control : Knob Control to set the Voltages and Current
Input protection : 1Amp. Fuse on both hot and neutral
Input power (actual) : 220 VAC/50hz
Instruction Manual
Warranty card

Ordering Information
Cat.No	Product	Price
APS3150	High Voltage Power Supply	P. O. R

Digital Power Supply 300V/400mA

Ordering Information
Cat.No	Product	Price
DPS3004	Digital Power Supply 300V/400mA	Rs.35000.00

Agarose Gel Electrophoresis with Integrated Power supply

Ordering Information
Cat.No	Product	Price
HIP0050	Agarose Gel Electrophoresis with Integrated Power supply	Rs.44500.00

PCR Thermal Cycler Gradient

Ordering Information
Cat.No	Product	Price
TPCR96G	PCR Thermal Cycler Gradient	P.O.R
