TLC Viewer

    Specifications
  • Make : ORANGE
  • Model : TLC Viewer
  • EPI-UV Source : 254nm 8 Watts X 2 Tubes, 365nm 8 Watts X 2 Tubes
  • EPI-VIS : Fluorescent 8 watts X 2 Tubes
  • Input Voltage : 230V 50Hz AC Supply
  • Fuse : 2 Amp
  • Instruction Manual
  • Warranty Card
  • UV Dark hood Metal Cabinet With Powder Coated
  • Nitrile Sheet for Anti-Corrosion and to Visualize Strips
Ordering Information
Cat. No Product Price
TLC2536 TLC Viewer Rs. 29200.00

Table Top pH Meter

A pH meter is an electronic device used for measuring the pH which is either the concentration of Hydrogen ions in an aqueous solution or the activity of the Hydrogen ions in an aqueous solution. The pH will indicate if the solution is acidic or basic, but is not a measure of acidity or alkalinity. pH meters work in liquids though special probes are sometimes used to measure the pH of semi-solid substances. A typical pH meter consists of a special measuring probe (a glass electrode) connected to an electronic meter that measures and displays the pH reading

    Specifications
  • Make : ORANGE
  • Model : Table Top pH Meter
  • Range : 0 to 14 pH
  • Resolution : 0.01pH
  • Resolution : 0.01pH
  • Electrode : Combined Electrode with BNC Attachment
  • Input Connection : BNC Socket
  • Accuracy : ± 0.01 pH ± 1 digit
  • Display : 3 Digit 0.5” Seven Segment LED Displayd
  • Accessories : Electrode stand set, Electrode clip
  • Input Voltage : 230V 50Hz AC Supply
  • Fuse : 1 Amp
  • Weight : 1.7 kg (Approx.)
  • Instruction Manual
  • Warranty Card
Ordering Information
Cat. No Qty Price/Pack (`)
TTP1401 1 Rs.8900.00

Colony Counter

The most of the time-consuming part of carrying out a microbial count is the actual counting process on petri dishes. Colony counters facilitate this task and as a result are essential in every bacteriological laboratory. Their particular advantages are the easy, rapid and reliable counting of bacterial colonies with very simple handling.ORANGE colony counter is easy to use and allows fatigue-free and safe workthanks to its problem-free counting mechanism: Marking the colonies on the petri dish with the marker pen activates the counter.objects from slipping during operation.

    Specifications
  • Make : ORANGE
  • Model : Colony Counter
  • Range : 0 – 9999 counts
  • Resolution : 1 count
  • Disk Size : 110 mm
  • Magnification : 1.7X
  • Count Reset : Provided on Front Panel
  • Operating Environment : 0 – 50ºC / 5 to 95 % RH Non Condensing
  • Accessories : Magnifier, Electronic Marker Pen Magnifier stand set
  • Input Voltage : 230V 50Hz AC Supply
  • Fuse : 1 Amp
  • Weight : 2.5 kg (Approx.)
  • Instruction Manual
  • Warranty Card
Ordering Information
Cat No Qty Price/Pack (`)
TCC1499 1 Rs.12400.00

Immuno Gel Electrophoresis Unit


Mini Immuno Gel Electrophoresis Unit
    Specifications
  • Make : ORANGE
  • Model : Mini Immuno Gel Unit
  • Dimension : 14.5cm(L)x8cm(B)x8cm(H)
  • Buffer Volume : 150ml
  • No.of Slides : 2 (7.5cmx2.5cm)
  • Templates : Counter Current Template (1 No.)
    Rocket Template (1 No.)
    Immuno Electrophoresis Template (1 No.)
  • Gel Punch : Single Well
  • Gel Cutting Tool : Trough Cutter (1 No.)
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Instruction Manual
  • Warranty Card
Ordering Information
Cat No Qty Price/Pack (`)
IEM0002 1 Rs.9400.00

Midi Immuno Gel Electrophoresis Unit
    Specifications
  • Make : ORANGE
  • Model : Midi Immuno Gel Unit
  • Dimension : 16.5cm(L)x16cm(B)x8cm(H)
  • Buffer Volume : 350ml
  • No.of Slides : 5 (7.5cmx2.5cm)
  • Templates :Counter Current Template (1 No.)
    Rocket Template (1 No.)
    Immuno Electrophoresis Template (1 No.)
  • Gel Punch : Single Well
  • Gel Cutting Tool : Trough Cutter (1 No.)
  • Connecting Cord : Red and Black (Each One)
  • No. of Platinum electrodes : Positive and Negative (Each One)
  • Instruction Manual
  • Warranty Card
    • Ordering Information
    Cat No Qty Price/Pack (`)
    IED0005 1 Rs.12800.00

    Paper Gel Electrophoresis Unit

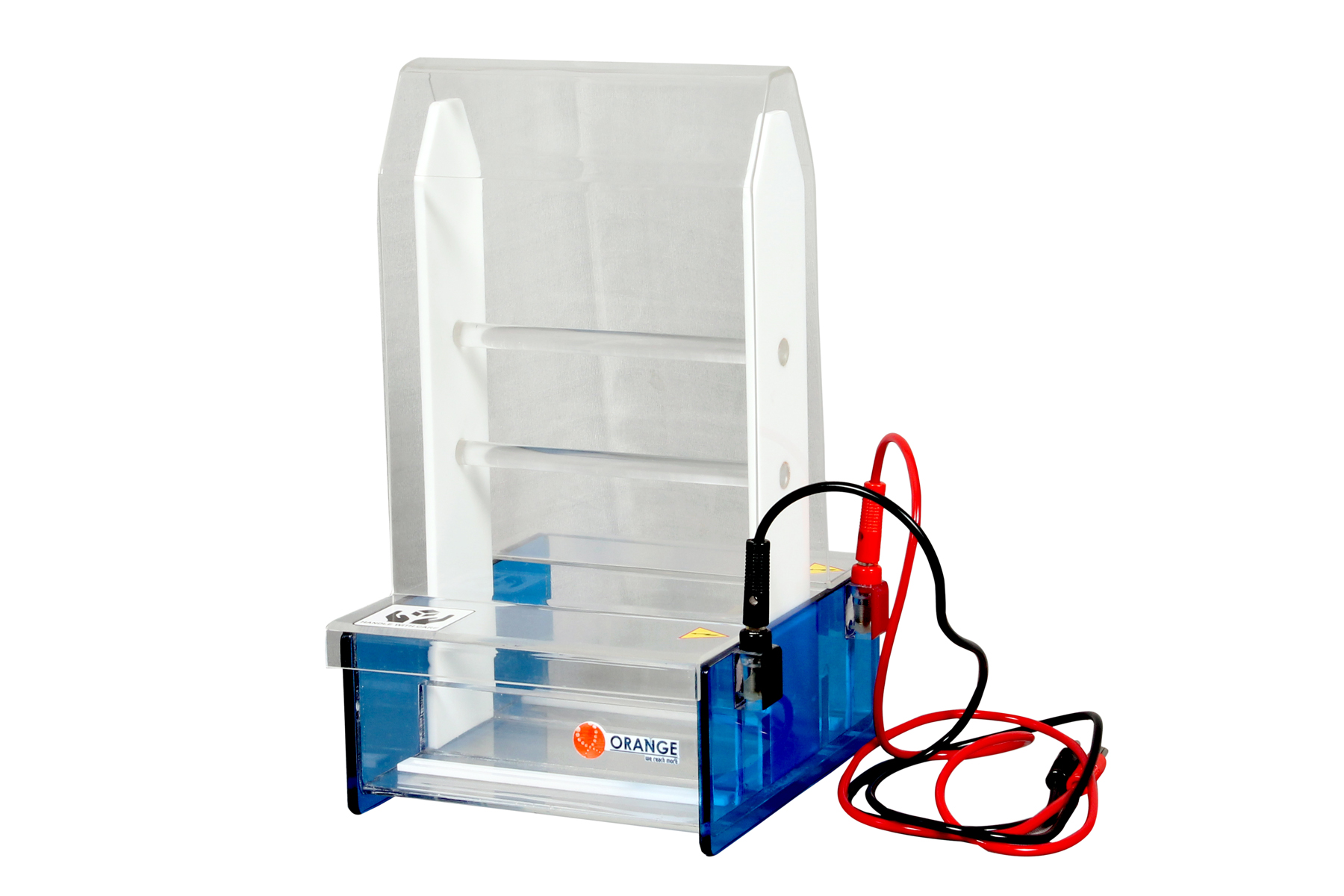

    Mini Vertical Paper Gel Electrophoresis Unit
      Specifications
    • Make : ORANGE
    • Model : Mini Vertical Paper Gel Unit
    • Dimension : 14.5cm(L)x14.5cm(B)x26cm(H)
    • Buffer Volume : 200ml
    • No.of Strips : 2 Nos.
    • Paper Supporting Rod : 2 Nos.
    • Buffer Chamber with Safety Lid : 1 No.
    • Connecting Cord : Red and Black (Each One)
    • No. of Platinum electrodes : Positive and Negative (Each One)
    • Instruction Manual
    • Warranty Card
      • Ordering Information
      Cat No Qty Price/Pack (`)
      VPM0002 1 Rs.11500.00

      Midi Vertical Paper Gel Electrophoresis Unit
        Specifications
      • Make : ORANGE
      • Model : Midi Vertical Paper Gel Unit
      • Dimension : 28.5cm(L)x14.5cm(B)x26cm(H)
      • Buffer Volume : 350ml
      • No.of Strips : 3 Nos.
      • Paper Supporting Rod : 3 Nos.
      • Buffer Chamber with Safety Lid : 1 No.
      • Connecting Cord : Red and Black (Each One)
      • No. of Platinum electrodes : Positive and Negative (Each One)
      • Instruction Manual
      • Warranty Card
        • Ordering Information
        Cat No Qty Price/Pack (`)
        VPD0003 1 Rs.14900.00

        Horizontal Paper Gel Electrophoresis Unit
          Specifications
        • Make : ORANGE
        • Model : Horizontal Paper Gel Unit
        • Dimension : 18.5cm(L)x28cm(B)x6.5cm(H)
        • Buffer Volume : 300ml
        • No.of Strips : 6 Nos.
        • Paper Supporting Rod : 1 Nos.
        • Buffer Chamber with Safety Lid : 1 No.
        • Connecting Cord : Red and Black (Each One)
        • No. of Platinum electrodes : Positive and Negative (Each One)
        • Instruction Manual
        • Warranty Card
          • Ordering Information
          Cat No Qty Price/Pack (`)
          HPD0006 1 Rs.15400.00

          Tube Gel Unit

          Mini Tube Gel Unit
            Specifications
          • Make : ORANGE
          • Model : Mini Tube Gel Unit
          • Dimension : 20cm(L)x13.5m(B)x17.5cm(H)
          • Glass Tube : 7.5cm (L)x0.2cm (ID) (6 Nos)
          • Rubber Grommets : 6 Nos (with Hole)
          • Rubber Grommets : 5 Nos (without Hole)
          • Buffer Chamber with Safety Lid : 1 No
          • Glass Tube Fixing Stand : 1 No
          • Connecting Cord : Red and Black (Each One)
          • No. of Platinum electrodes : Positive and Negative (Each One)
          • Instruction Manual
          • Warranty Card
            • Ordering Information
            Cat No Qty Price/Pack (`)
            TGM0075 1 Rs.18900.00

            Midi Tube Gel Unit
              Specifications
            • Make : ORANGE
            • Model : Midi Tube Gel Unit
            • Dimension : 20cm(L)x13.5m(B)x17.5cm(H)
            • Glass Tube : 14cm (L)x0.2cm (ID) (6 Nos)
            • Rubber Grommets : 6 Nos (with Hole)
            • Rubber Grommets : 5 Nos (without Hole)
            • Buffer Chamber with Safety Lid : 1 No
            • Glass Tube Fixing Stand : 1 No
            • Connecting Cord : Red and Black (Each One)
            • No. of Platinum electrodes : Positive and Negative (Each One)
            • Instruction Manual
            • Warranty Card
              • Ordering Information
              Cat No Qty Price/Pack (`)
              TGM0014 1 Rs.21200.00

              2-D PAGE Gel Unit

              Mini 2-D PAGE Gel Unit
                Specifications
              • Make : ORANGE
              • Model : Mini 2-D PAGE Gel Unit
              • Dimension : 20cm(L)x13.5m(B)x17.5cm(H)
              • Glass Tube : 7.5cm (L)x0.2cm (ID) (6 Nos)
              • Rubber Grommets : 6 Nos (with Hole)
              • Rubber Grommets : 5 Nos (without Hole)
              • Buffer Chamber with Safety Lid : 1 No.
              • Vertical Gel Apparatus : Mini Model (1 set of Unit with all Accessories)
              • Glass Tube Fixing Stand : 1 No.
              • Connecting Cord : Red and Black (Each One)
              • No. of Platinum electrodes : Positive and Negative (Each One)
              • Instruction Manual
              • Warranty Card
                • Ordering Information
                Cat No Qty Price/Pack (`)
                TDM7500 1 Rs.33700.00

                Midi 2-D PAGE Gel Unit
                  Specifications
                • Make : ORANGE
                • Model : Midi 2-D PAGE Gel Unit
                • Dimension : 20cm(L)x13.5m(B)x17.5cm(H)
                • Glass Tube : 14cm (L)x0.2cm (ID) (6 Nos)
                • Rubber Grommets : 6 Nos (with Hole)
                • Rubber Grommets : 5 Nos (without Hole)
                • Buffer Chamber with Safety Lid : 1 No.
                • Vertical Gel Apparatus : Midi Model (1 set of Unit with all Accessories)
                • Glass Tube Fixing Stand : 1 No.
                • Connecting Cord : Red and Black (Each One)
                • No. of Platinum electrodes : Positive and Negative (Each One)
                • Instruction Manual
                • Warranty Card
                  • Ordering Information
                  Cat No Qty Price/Pack (`)
                  TDD1400 1 Rs.39300.00

                  MICROPIPETTES

                  MICROPIPETTES-NORMAL
                  Ordering Information
                  Cat No Product Price/Pack (`)
                  1001 Micropipette 0.1-2.5µl Rs.2800.00
                  1004 Micropipette 0.5-10µl Rs.2800.00
                  1005 Micropipette 0.5-10µl Rs.2800.00
                  1006 Micropipette 5-50µl Rs.2800.00
                  1008 Micropipette 10-100µl Rs.2800.00
                  1009 Micropipette 20-200µl Rs.2800.00
                  1014 Micropipette 100-1000µl Rs.2800.00
                  1017 Micropipette 1000-5000µl Rs.2800.00
                  1033 Micropipette 2-10ml Rs.2800.00
                  2018 Micropipette 5µl Rs.2800.00
                  2019 Micropipette 10µl Rs.2800.00
                  2020 Micropipette 20µl Rs.2800.00
                  2022 Micropipette 50µl Rs.2800.00
                  2023 Micropipette 100µl Rs.2800.00
                  2024 Micropipette 200µl Rs.2800.00
                  2026 Micropipette 500µl Rs.2800.00
                  2027 Micropipette 1000µl Rs.2800.00

                  MICROPIPETTES- STAR
                  Ordering Information
                  Cat No Product Price/Pack (`)
                  SPIP-2.5 Micropipette 0.1-2.5µl Rs.3600.00
                  SPIP-10 Micropipette 1-10µl Rs.3600.00
                  SPIP-20 Micropipette 2-20µl Rs.3600.00
                  SPIP-50 Micropipette 5-50µl Rs.3600.00
                  SPIP-100 Micropipette 10-100µl Rs.3600.00
                  SPIP-200 Micropipette 20-200µl Rs.3600.00
                  SPIP-1000 Micropipette 100-1000µl Rs.3600.00
                  SPIP-5000 Micropipette 1000-5000µl Rs.3600.00
                  SPIP-10000 Micropipette 1000-5000µl Rs.3600.00
